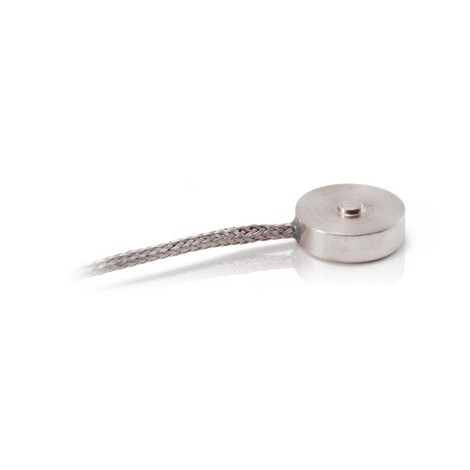

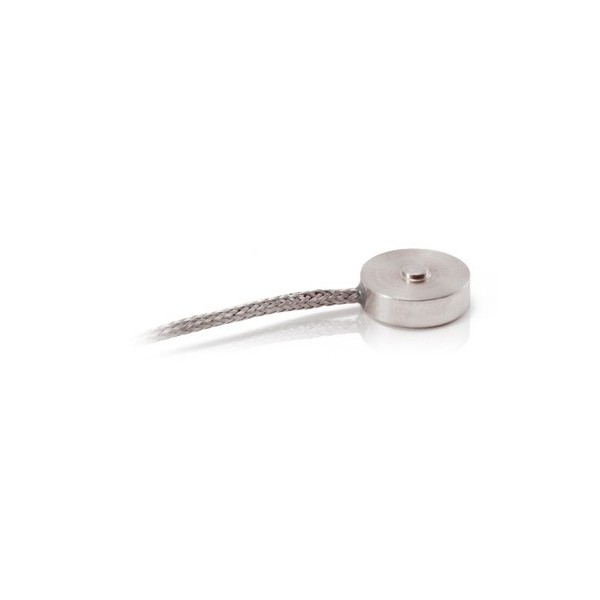

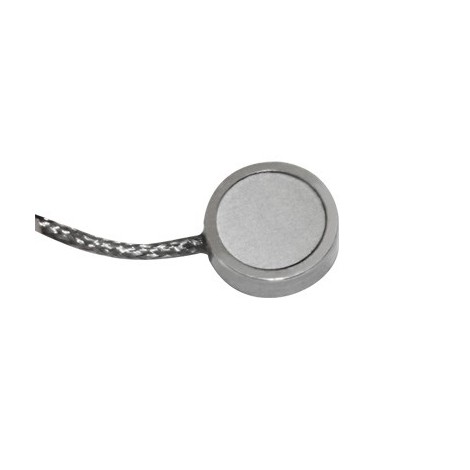

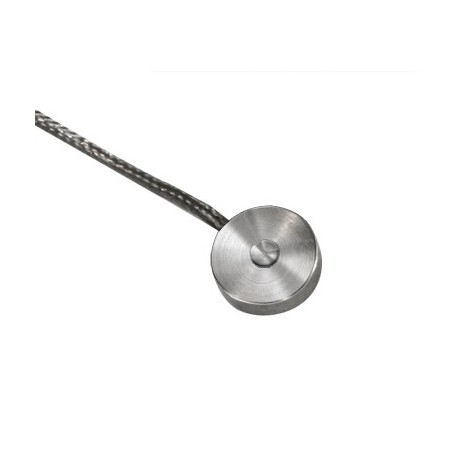

LLB130: Miniature Load Cell Button
Subminiature Load Cell Button.
Capacities : 0 to 5, 10, 25, 50 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Log in to your account to display prices
Login
Login
Applications
> <
What Sensors Do Humanoid Robots Have ?
Sensors used in 3D Printers
Battery Manufacturing Automation and Force Sensors
186 Bearing Load Measurement
Gym Workout Training Weight Sensors
Bag Sealer Validation
Laparoscopic Calibration
Arbor Press Verification
Reliability Test Stand
Batch Weighing
Snow Shoes Testing
OEM Test Stand
Robotic Tactile Sensing
Bite Force Measurement Study
Tube Expansion Measurement

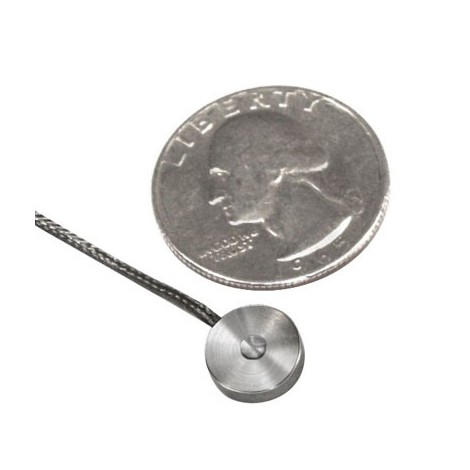

Model LLB130 is a Miniature Load Button designed for Press, or Inline compression applications. The LLB130 Miniature Load Button model is made from a robust 17-4 PH Stainless Steel, with a subminiature 0.38 inch outside diameter.
Although Miniature Load Button are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. These load cells achieve great accuracy and stiffness with a Nonlinearity of ±0.5% and Deflection of 0.002” nominal. You will also find options for external matched output readily available.
LLB130
Subminiature Load Cell Button.
Capacities : 0 to 5, 10, 25, 50 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
