LCM100: Miniature Tension and Compression Load Cell from +/- 1000g, ... , +/- 25 Lb
Ultra light miniature tension copression load cell.
Capacities : +/- 1000g, 5, 10, 25 Lb.
Rated output : 1 or 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Protection IP64.
Log in to your account to display prices
Login
Login
Applications
> <
What Sensors Do Humanoid Robots Have ?
Sensors used in 3D Printers
TAVR Valve Durability Testing
Orion Deployment Mechanism
Prone Stereotactic Biopsy
Gym Workout Training Weight Sensors
Endoscope Force Control
Die-Attach Force Measurement
Prosthetic Foot Emulator
Precision Wire Tensioner
Suspension System Performance Validation
Robotic Glove Rehabilitation Device
Biomedical Research
Jet Parachute Deployment
Industrial Wire Tension Measurement

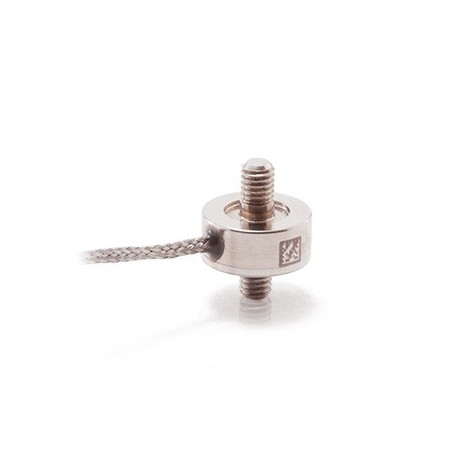

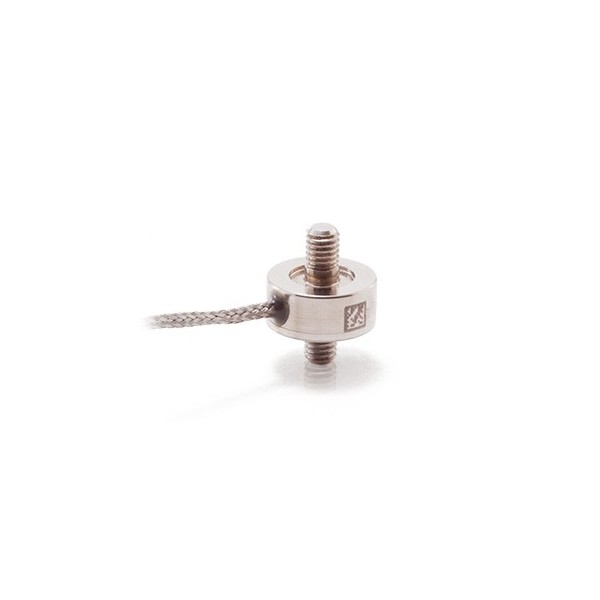

LCM100 is a Miniature Tension and Compression Load Cell built for Endurance or Inline Tension or Compression applications. The standard LCM100 Miniature Tension and Compression Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 5 feet long cable. This product offers an exceptional weight of 0.3 oz (8.5 g).
The Miniature Tension and Compression Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.0005” nominal.
LCM100
Ultra light miniature tension copression load cell.
Capacities : +/- 1000g, 5, 10, 25 Lb.
Rated output : 1 or 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Protection IP64.
