Compression Donut Load Cell.
Capacities : 0 to 50,100, 250, 500, 1000 Lb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8''.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.

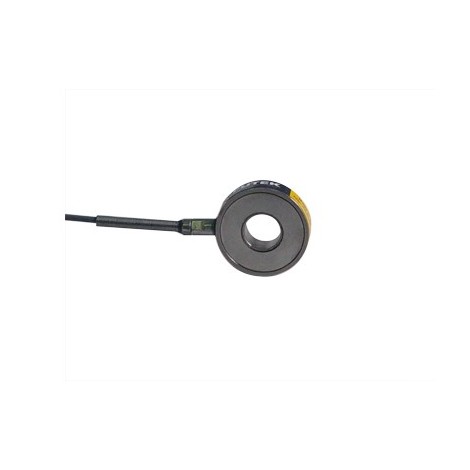

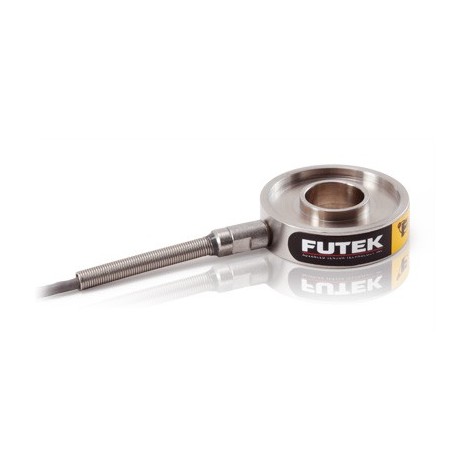

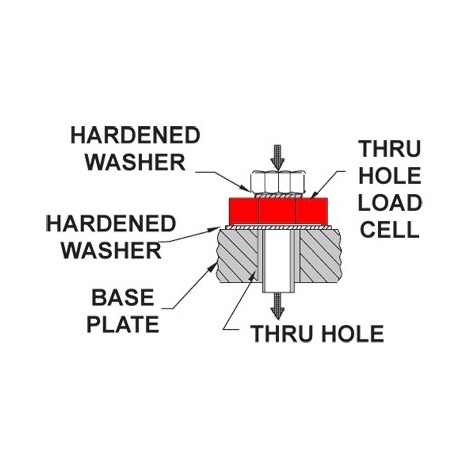

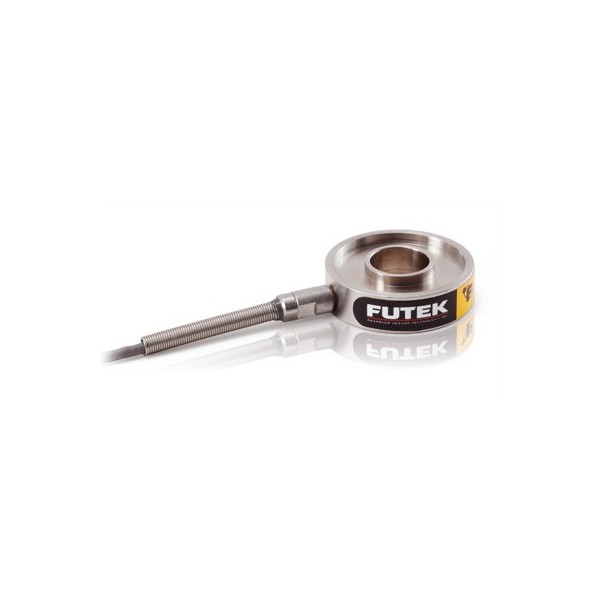

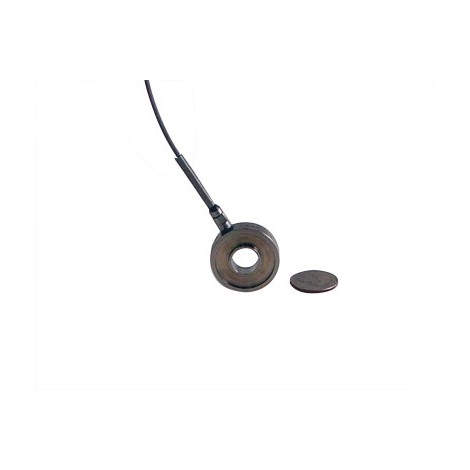

LTH300 is a Donut Loa d Cell built for compression applications (Press control). The Donut Load Cell LTH300 has a very robust Stainless Steel construction and offer several I.D. range between 1/8” and 3/8”.
The LTH300 Load Cell offers high accuracy ±0.5% and high stiffness. This load cell is supplied with 5 points NIST calibration certificate and can be customized to meet your requirements.
