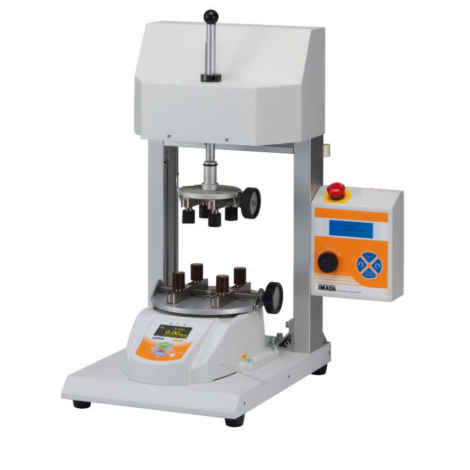

MTS : Motorized Torque Stand

Motorized test stand for determining and testing the opening and closing forces of screw caps, used for bottles, cans, cosmetic products etc.
Adjustable rotation speed : 3 - 90 degree/sec.
Sample Height From 140 to 340 mm.
Option  Rotary encoder (-RA is at the end of the model).

Log in to your account to display prices
account_circleSend to a friend
MTS : Motorized Torque Stand

MTS : Motorized Torque Stand

Motorized test stand for determining and testing the opening and closing forces of screw caps, used for bottles, cans, cosmetic products etc.
Adjustable rotation speed : 3 - 90 degree/sec.
Sample Height From 140 to 340 mm.
Option  Rotary encoder (-RA is at the end of the model).



Applications

> <
Motorized test stand for determining and testing the opening and closing forces of screw caps, used for bottles, cans, cosmetic products etc. Further application areas are testing torque switches, plugs, lenses etc. The most importend sectors of industry are the pharmaceutical, cosmetics, beverage and electronic industry.
  • The rotation speed can continuousely be adjusted 3 - 90 degree/sec. The value will be displayed.
Realizes More Accurate and Repeatable Torque Measurement on Desktop.

There are 3 selectable test mode, MANUAL mode, CONTINUOUS mode and ONE WAY mode.
-MANUAL mode: Rotates while the arrow button is pressed.
-CONTINUOUS mode: Performs a reciprocating rotation. It is possible to repeat at specified number of times and to apply specified torque in setting time in either or both directions.
-ONE WAY mode: Perform either rotation CW or CCW (Selectable). Automatically, it stops when the applied torque reaches at setting torque.
