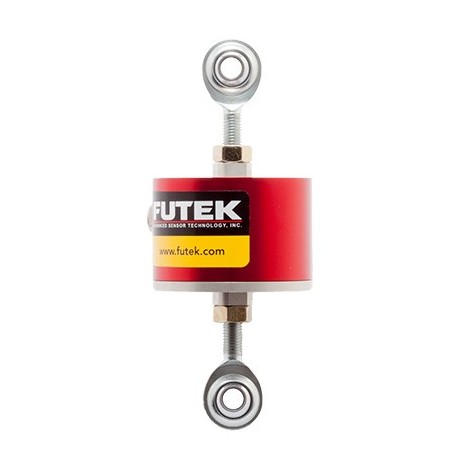

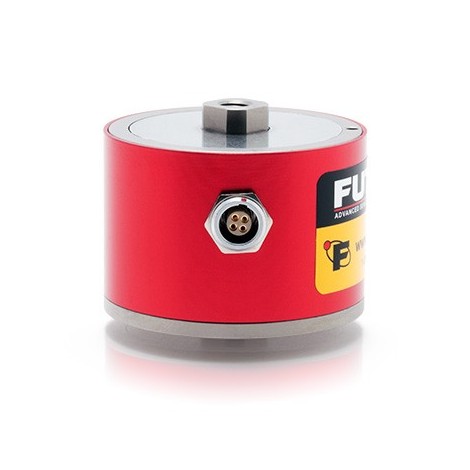

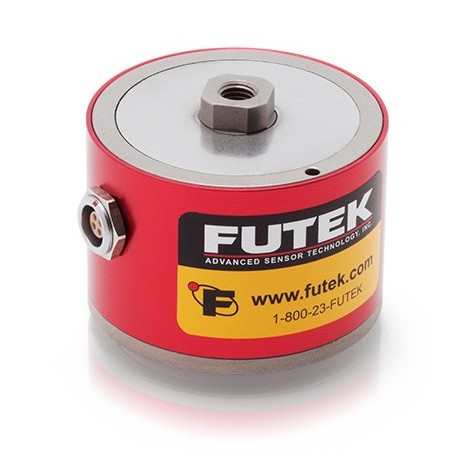

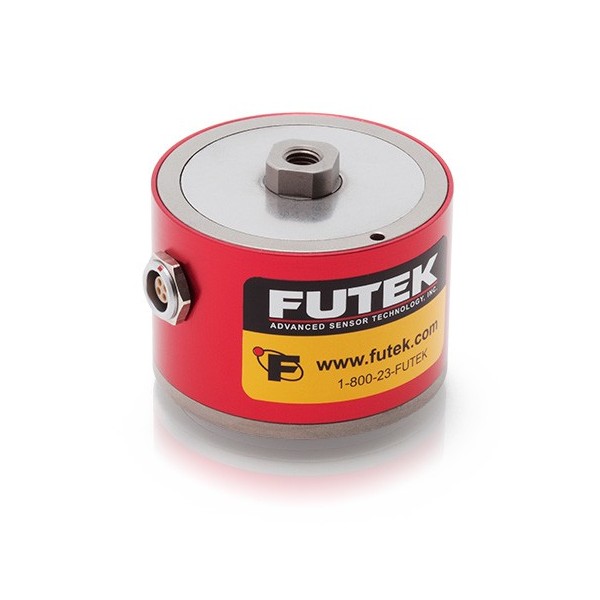

LCF300 : Tension Compression Universal Load Cell - From +/- 25 Lb to 500 Lb
Tension Compression Universal Load Cell.
Capacities : +/- 25, 50, 100, 250, 500 Lb.
Rated output : ± 1, 2 mV/V.
Non Linearity : < 0.25 %.
Material : Aluminum, Stainless Steel.
Connector output.
Log in to your account to display prices
Login
Login
Applications
> <
Battery Manufacturing Automation and Force Sensors
Aircraft Structural Testing
Press fit force determination of an assembly
What is the clamping force in injection molding?
Dual Tank Level Controller
189 Crane Load Cell
342 Load Cell Torque Measurement
Pill Press Force Verification
Ultrasonic Welding Clamp Force
Prosthetic Hip Fatigue Testing
Package Drop Test Machine
Rocket Engine Thrust Stand
Plastic Injection Molding Force Feedback
Automotive Seat Durability Testing
Medical Patient Lift
Portable Crane Weighing
Automation Container Filling
Tank Dispensing
Silo Measurement
Material Force Testing
Model LCF300 Universal Load Cell is a low profile tension and compression load cell designed for applications where vertical space is limited or extraneous loads are encountered. Typical applications include Endurance and Fatigue Testing, where long performance cycles are required.
The LCF300 Universal Load Cell has female/female threads and with its intricate one-piece-construction, it is able to withstand high extraneous loads. It is available in Aluminum for lower capacities (10 to 50 lbs) and Stainless Steel for higher capacity range (100 to 500 lbs).
LCF300
Tension Compression Universal Load Cell.
Capacities : +/- 25, 50, 100, 250, 500 Lb.
Rated output : ± 1, 2 mV/V.
Non Linearity : < 0.25 %.
Material : Aluminum, Stainless Steel.
Connector output.
