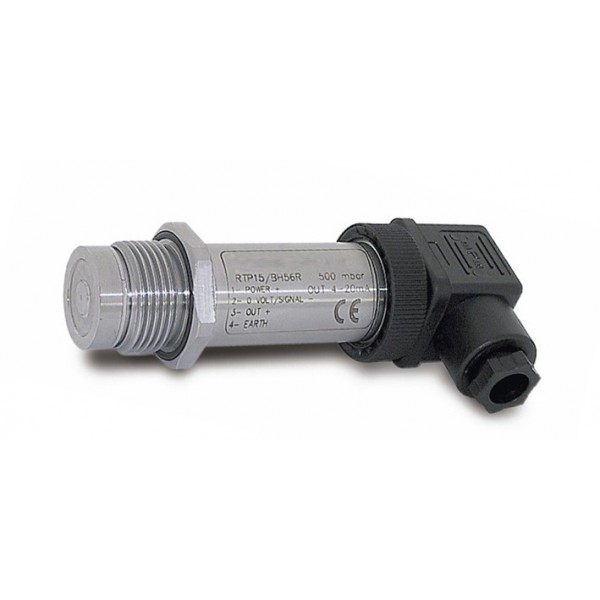

SM-TP15: flush diaphragm pressure transducer - From 1, ..., 50 bars

 Flush Mount Diaphragm Pressure transducers for relative, absolute and vacuum measures.
Nominal pressures from 1 bar to 50 bar.
Output 4-20mA, 10V or 5Volt.
Linearity and hysteresis 0,5%.
Protection  IP65.
Process coupling 3/4" GAS Male.

Log in to your account to display prices
account_circleSend to a friend
SM-TP15: flush diaphragm pressure transducer - From 1, ..., 50 bars

SM-TP15: flush diaphragm pressure transducer - From 1, ..., 50 bars

 Flush Mount Diaphragm Pressure transducers for relative, absolute and vacuum measures.
Nominal pressures from 1 bar to 50 bar.
Output 4-20mA, 10V or 5Volt.
Linearity and hysteresis 0,5%.
Protection  IP65.
Process coupling 3/4" GAS Male.



Applications

> <

 SM-TP15 pressure sensor, is adapted to solve problems in food industries, are now commonly used in those productive processes where pressure or level measurements of dense substances are required. SM-TP15 pressure transducer is particularly suitable for pressure measurement where the media is with high viscosity.
Flush diaphragm SM-TP15 enable to perform an accurate cleaning of the sensor and to prevent from forming of residuals on the measuring area.
The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion.
