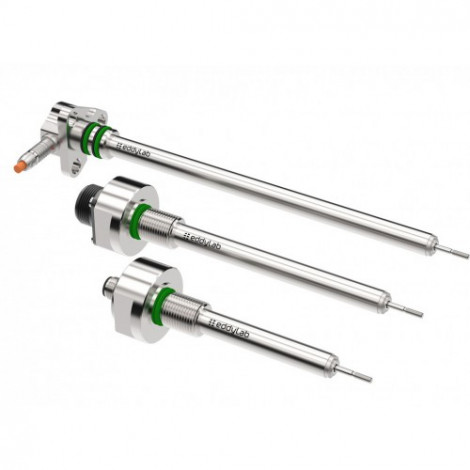

SM - HYD : LVDT inductive Position Transducer

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 180 mm.
Pressure resistant up to 400 bar.
Screw flange M18x1,5 / M30x1,5 or plug-in flange Ø18.
Type : free core, push rod unguided.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, 4...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +150 °C

Log in to your account to display prices
Range
account_circleSend to a friend

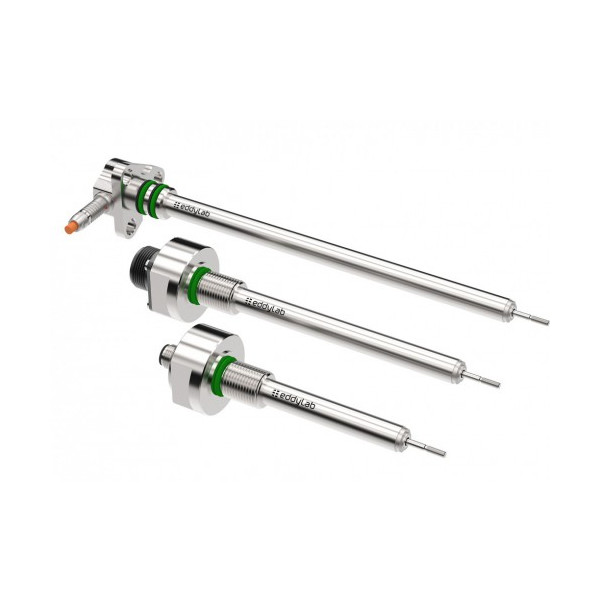

SM - HYD :  LVDT inductive  Position Transducer

SM - HYD : LVDT inductive Position Transducer

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 180 mm.
Pressure resistant up to 400 bar.
Screw flange M18x1,5 / M30x1,5 or plug-in flange Ø18.
Type : free core, push rod unguided.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, 4...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +150 °C



Applications

> <
