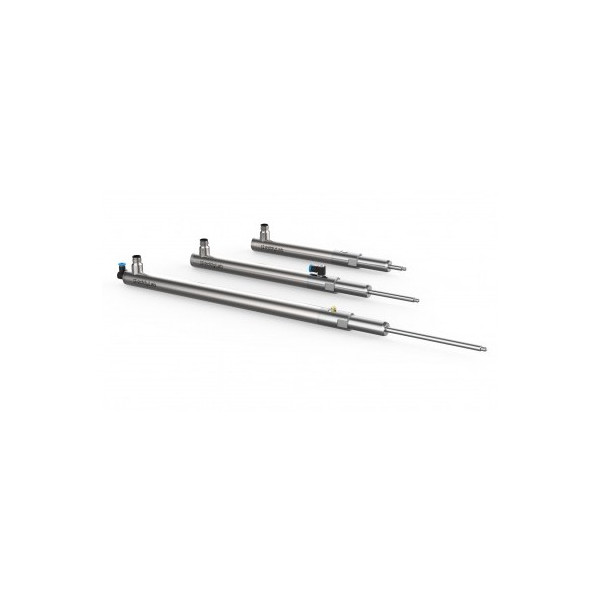

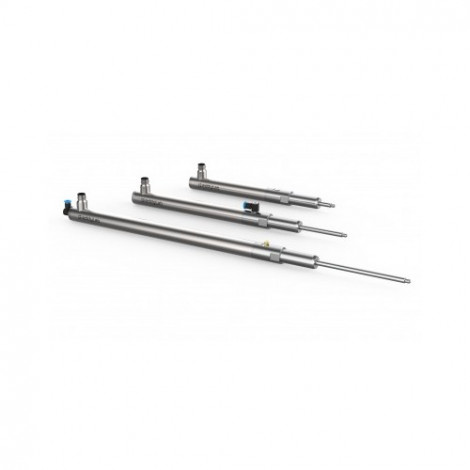

SLT - EDDYLAB : LVDT inductive sensors with spring loaded and air actuated versions from 10, ..., 300mm.

Ranges : 10 - 300 mm.
Type : spring loaded mechanism, pneumatic version PR1: pressurized air extends push rod, pneumatic version PR2: pressurized air retracts push rod.
Linearity max.: ±0.30 %, opt. ±0.20 % / ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP65, (opt. IP67).
Operating temperature :-40 °C...+120 °C, opt. +150 °C / +200 °C.

Log in to your account to display prices
Range
account_circleSend to a friend
SLT - EDDYLAB :  LVDT inductive sensors with spring loaded and air actuated versions from 10, ..., 300mm.

SLT - EDDYLAB : LVDT inductive sensors with spring loaded and air actuated versions from 10, ..., 300mm.

Ranges : 10 - 300 mm.
Type : spring loaded mechanism, pneumatic version PR1: pressurized air extends push rod, pneumatic version PR2: pressurized air retracts push rod.
Linearity max.: ±0.30 %, opt. ±0.20 % / ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP65, (opt. IP67).
Operating temperature :-40 °C...+120 °C, opt. +150 °C / +200 °C.



Applications

> <
