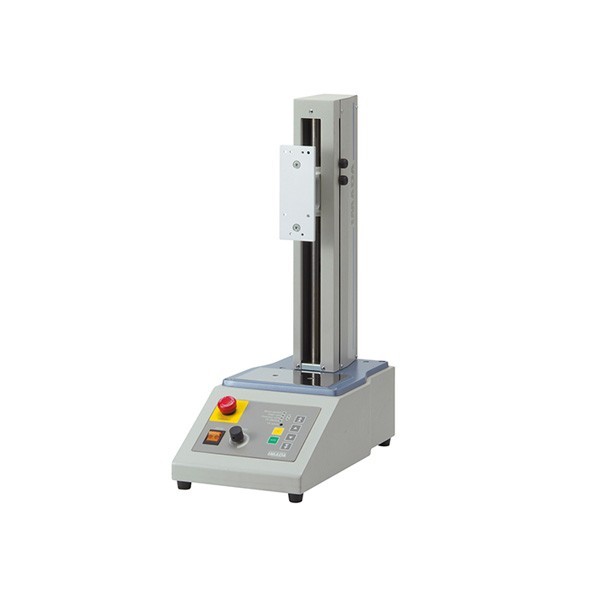

MX-1000: Vertical Motorized force test stands
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 1000N.
Travel speed from 6 to 180 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 300 mm.
Log in to your account to display prices
Login
Login
Applications
> <
Aluminum Foil Breaking Strength Test
Three-stage compression test of a spring
Insertion-extraction test of perfume bottle's cap
Tension test on the handle of a fabric bag
Tensile strength test of zipper fasteners
Hardness measurement of a tablet (compression...
Strength and sharpness test of an acupuncture...
Adhesion test on antiseismic gel
Weld joint shear test
Adhesive Tape Peel Strength Test
Heat Seal Strength Test of Plastic Bags
Complete peeling test of instant noodles bowl's...
Peel Test and Peel Strength of hook and loop...
Peel off test of flexible printed circuit
Test method for measuring the sealing force of...
Peel test on solar cell tapes
Cloth sewing strength test
Shear Test and Peel Strength Test of Hook and...
Evaluation of bread texture
Automotive air conditioner’s knob operability...
Wire crimped terminal test
Tensile strength test of cable terminals...
Tensile Strength Test of Crimped Wire Terminals...
Tensile test on the termination of high voltage...
Cable Crimp Terminals Tension Strength Test
Wire connectors pullout test
Pull-off Test of Coating
Glass breakage measurement
Sponge / foam hardness measurement
Lithium battery film hardness measurement
Hardness measurement on beauty product
Mesure de la force de traction du fil
Measuring the pulling force of toothbrush bristles
Plastic bottle crushing force measurement
Asparagus breaking force measurement
Breaking force measurement of a fishing...
Compression/crushing force measurement of material
Measuring the cutting force of a food
Thick cable tension force measurement
Bag strap tension force measurement
Pasta tension force measurement
Pharmaceutical packaging stiffness measurement
Rubber tensile measurement
Zipper force test
Syringe resistance test
Spray nozzle jet force test
Pharmaceutical tablet crushing strength test
Ball hardness test
Cloth button pull off test
Food Can Opening Test
Durability Test of a box
180 degree peel test for adhesion test
Tension test of USB cable
Beverage Can Opening Test
Switch feeling test (Motorized)
90 degree peel test
3 point bending test
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement.
- Test stand with infinitely adjustable travel speed from 8 to 240 mm/min.
- 3 OPERATIONS MODES :
Single or continuous operation for constant testing conditions.
- manual operation: Feed continuous so long as button is pressed or he limit switch is reached.
- single cycle operation: The force gauge covers a defined distance for one-time. - - continuous cycle operation: Force gauge travels a defined distance continously up and down.
AVALAIBLE OPTIONS:
-E option Equips an encoder which displays speed and distance.
-S option Equips a length scale.
-L option Equips 200mm or 250mm longer stroke than the standard model
-L option Equips 200mm or 250mm longer stroke than the standard model
MX-1000
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 1000N.
Travel speed from 6 to 180 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 300 mm.
