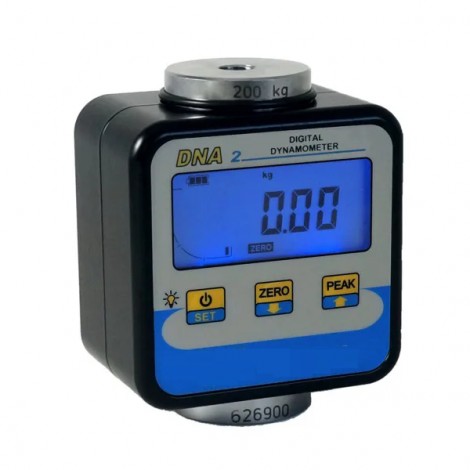

Compact Dynamometer for COMPRESSION and TENSION measurements
Nominal Loads from 100kg to 5t
Accuracy: 0.05% Class (ISO 376) 1
Autonomy 50 hours
Rechargeable battery
Functions of: ZERO, PEAK, FILTER
Programmable units: kg, t, N, daN, kN
Automatic shutdown
Sensor: stainless steel
Metal case

• Small Footprint: only 0.16” (4.1 mm) height and 0.5” (12.7 mm) outer diameter
• Lightweight: 0.08 oz (2.3 g)
• Capacity: from 5 lb to 150 lb (22.2 N to 667 N)
• Dynamic response: exceptional low deflection and high natural frequency
• Energy efficient: 1000 Ohm bridge resistance enables low power consumption

Inline 3 DOF/Axis Load Cell.
Fx, Fy & Fz : +/- 10 Lb.
Fx, Fy & Fz output : ± 2 mV/V.
33.8 mm OD x 64.8 mm H , M4x0.7-Threads.
Material - 2024-T4 Aluminum.
3x 4 Pin Micro Receptacle.

• Measuring range : 50 - 100 – 250 – 500 kg, 1000 - 2500 - 3500 - 5000 kg
• Sensitivity: 2 mV/V,  4..20 mA
• Linearity: 0.2%.
• Repeatability: 0.05%.
• Operating Temperature : -20 to +70°C
• Storage temperature: -20 to +80°C
• Protection: IP67
• Material: Stainless steel

• High capacity Compression Donut Load Cell.
• Capacities : 0 to 100 - 200-  300 - 500 - 750-  1000- 1500- 2000- 3000 KN.
• Rated output : 2 mV/V, 0...5V, 0...10V, 4...20mA.
• Accuracy   < 0.5% FS.
• Material : Stainless steel.
• Protection IP65
• Internal Diameter 46, 70, 94, 110 MM.

Measuring load pin with customized diameters and lengths to replace existing axies
Double shear beam load cell principle
Measuring element from high tensile stainless steel
Protected IP 66 (EN 60529)
Easy to install
Available in ATEX version (optional) Zone 0-1-2 (gas) and 20-21-22 (dust)

Display for force, torque, pressure sensor.
5 digit LED display: -19999 to +99999.
Input signals: mA, V - mV/V mV.
Communication: RS2 Serial RS232C, RS4 Serial RS485, ETH Ethernet.
Three-color LED to display the measurement status.

• Biaxial Wireless sensor measurement.
• Die-cast aluminium.
• IP 67 Protection.
• Accuracy: ±0.003° for ±2.5°, ±5.0°, and ±10° range; ±0.01° for ±15° range.
• High long term stability.

Measuring Range  : 5, 20, 50, 100, 250 mm.
Power supply : 2.5-5.25V, or 12-24V.
Signal output : 4-20mA,0-5V,0-10V, RS-232, or RS-485.
Accuracy 0.5% of Full Scale.
Misalignment and overstroke tolerant.
Water-proof and submersible (IP68).
Built-in environmental compensation.

Measurement axes :
- 1 axis (SM-DMI810 series)
- 2 axis (SM-DMI820 series)
Measuring range :
- Angular : ±15°; ±30°
- Metric : 267mm; 577mm
Accuracy :
- Angular : 0.005° (0.01° version ±30°)
- Metric : 0.1 (0.2 version ±30°)
Resolution :
- Angular : 0.001° (0.01° version ±30°)
- Metric : 0.2 (±30° version)
Units : Angle, radian or mm
Display : LCD 64 colors 57.6x43.2mm
Output : USB
Data visualization : Live or on VC software (provided)
Weight : 300g
Materials : Metal
Dimensions : 117x75x27mm
Protection class : IP54

• Incremental encoder Ø90 mm with Solid shaft or through shaft
• Body diameter : 90 mm.
• Shaft diameter  :11, 12 mm.
• through diameter  10 ,  ...30 mm.
• Resolution : 1 à 100 000 PPR
• Max. admissible rotational speed 9000 tours/min
• Power supply 5V or  4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial or axial.

• Incremental encoder Ø58 mm with Hollow shaft and dual output
• Body diameter : 58mm.
• Shaft diameter  :6, 8, 10, 12, 14, 15 mm.
• Resolution : 1 à 100 000 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial.

• Incremental encoder Ø58 mm with Through shaft
• Body diameter : 58mm.
• Shaft diameter  :6, 8, 10, 12, 14 mm.
• Resolution : 1 à 100 000 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial.

• Incremental encoder Ø58 mm with Solid shaftt and double output
• Body diameter : 58mm.
• Shaft diameter  :6, 10 mm.
• Resolution : 1 à 100 000 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 5V or  4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial

Measuring range :
- ±180° (version 410)
- ±90° (version 420)
Length measuring range : 0~±999.9mm/m
Measuring range : ±180°
Accuracy : ±0.05°
Resolution : 0.01°
Screen : LCD 40x32mm
Data transmission : Possible via USB
Autonomy : 8h of continuous use for 3h of charge
Operating temperature : -10 to 70°C
Humidity resistance : 85%φ
Protection class : IP54
Weight : 125g
Dimensions : 83x53x19.2mm
Materials : Aluminum alloy

• Incremental encoder Ø58 mm with Solid shaftt
• Body diameter : 58mm.
• Shaft diameter  :6, 10 mm.
• Resolution : 1 à 100 000 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 5V or  4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial or axial.

• Incremental encoder Ø40 mm with Solid shaftt
• Body diameter : 40 mm.
• Shaft diameter  :6 mm.
• Resolution : 1 à 65 536 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 5V or  4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial or axial.

• Incremental encoder Ø30 mm with Solid shaftt
• Body diameter : 30 mm.
• Shaft diameter  :4, 5, 6 mm.
• Resolution : 64 ; 128 ; 256 ; 512 ; 1024 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial or axial.

• Incremental encoder Ø24 mm with Solid shaftt
• Body diameter : 24 mm.
• Shaft diameter  :4, 5, 6 mm.
• Resolution : 64 ; 128 ; 256 ; 512 ; 1024 PPR
• Max. admissible rotational speed 12000 tours/min
• Power supply 4.75 à 32 Vdc
• Push-Pull output RS422 compatible
• Protection IP65, IP67
• Connector or cable output , radial or axial.

Measuring range : ±90°
Accuracy : ±0.05°
Resolution : 0.01°
Screen : LCD 40x32mm
Autonomy : 8h of continuous use for 3h of charge
Operating temperature : 10 to 70°C
Humidity resistance : 85%φ
Protection class : IP54
Weight : 125g
Dimensions : 83x53x19.2mm
Materials : Aluminum alloy

Measuring range :
- ±90° (1 axis version)
- ±30° (2 axis version)
Accuracy :
- 0.02° (1 axis version)
- 0.005° (2 axis version)
Resolution : 0.001°
Units : Angle, degrees or mm/m selectable
Display : Bright 64 color LCD 80.5x45mm
Operating temperature : +10°C to +70°C
Humidity resistance : 85% φ
Battery life : 6h of continuous use
Protection class : IP65
Weight : 600g
Dimensions : 115x95x32mm

Measuring range: 0 ... 6000 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

Measuring range: 0 ... 3500 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

Measuring range: 0 ... 2500 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

Measuring range: 0 ... 1500 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

Measuring range: 0 ... 50, 100, 250, 500, 750, 1000, 1250 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

Measurement axes :
- 1 axis (SM-DMI815 series)
- 2 axis (SM-DMI825 series)
Measuring range :
- Angular : ±15°; ±30°
- Metric : 267mm; 577mm
Accuracy :
- Angular : 0.005° (0.01° version ±30°)
- Metric : 0.1 (0.2 version ±30°)
Resolution :
- Angular : 0.001° (0.01° version ±30°)
- Metric : 0.2 (±30° version)
Units : Angle, radian or mm
Display : LCD 64 colors 57.6x43.2mm
Output : RS485 / RS232
Weight : 300g
Materials : Metal
Dimensions : 117x75x27mm
Protection class : IP54

• Measurement ranges:
• - 0.02 to 1,000 N・m (Version WDI-10HR)
• - 0.2 to 10.00 N・m (Version WDI-100HR)
• - 0.2 to 25.00 N・m (Version WDI-250SJ)
• Accuracy : ±0.5％
• Sampling : 1000 data per second
• Display : liquid crystal
• Data storage : 800 values
• Measurement modes : TR (tracking), PP(peak to peak), PD (negative peak), C (real time output)
• Clock : Stores measurement dates
• Autonomy : 12h
• Screwdriving simulators :
• - SJ-50/SJ-200 (WDI-250SJ version)
• - SJ-10K/OW-025/OW-10 (WDI-10HR version)
• - SJ-10K/SJ-50/OW-60/OW-20 (WDI-100HR version)
• Accessories : AC/DC Adapter, Hand Tool Cube Adapter, USB Cable, Calibration Certificate, Traceability Certificate

• Measurement ranges : 0.020 - 1.5 N･m
• Accuracy : ±1％
• Display : 4-digit LCD
• Measuring direction : clockwise and counterclockwise
• Data storage : 400 values
• Measuring modes : Track, PP(peak to peak),PP C(Tightening counter), C (real time output)
• Sleep mode : Every 3 minutes of non-use
• Charging time : 3h
• Continuous use time : 12h
• Calibration and traceability certificates included.

Subminiature Load Cell Button.
Capacities : 0 to 100, 150, 250 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.

▪ Pinching and opening (spreading) action-force measurement jig for small size objects.

▪ Designed to measure a variety of industrial, medical, and daily use products such as: - Pinch and Double handle tools - Forceps, Nippers, Pliers, Clamps, Pincer and Tongs.

▪ The scale attached helps easy measuring widths adjustment.

▪ Measurement with simple steps of only mounting a force gauge, and lightweight to carry.

SJS-100N-L/S is alignment stage with 100N capacity for solder joint strength test of QFP lead (lead free solder) or IC chips.

It allows easy and fine position adjustment of tiny parts.

The stage angle is switchable to 45 or 90 degrees.

This motorized test stand has been customized and equipped with a large table to best suit the testing of large samples. The height and position can be easily adjusted with bolts to suit the sample. The quick tightening nut improves the efficiency of the work.

The MED-ACU accessory is intended for strength and sharpness testing of acupuncture needles for 2N capacities. It is designed to measure the strength and sharpness of acupuncture needles in accordance with the relevant parts of the ISO and JIS standards.

The MED-NPT-200N series is an accessory for measuring needle bonding forces for capacities up to 200N. It is designed to evaluate the pull-out force required to separate the needle from its hub. It allows testing in accordance with the relevant part of the ISO and JIS standards.

Measuring range : 500 N
Accuracy : ±1.0% of full scale
Resolution : 0.01 N
Cable length : 1.5 meters
Dimensions : 100x25x24 mm
Protection : IP65

Measures the closing force of automotive' s window or door simply putting the sensor part between sample and its frame

Facilitates force testing using flexible arm which enables you to easily fix sensor’s position and direction

Enables measurement applications in wet environment due to IP65 approval

Measuring range : 1500 N
Accuracy : ±1.0% of full scale
Cable length : 1.5m
Dimensions : 70x50x28 mm
Protection class : IP65

Measurement range : 5, 50, 100N
Resolution : 0.1%
Accuracy :
- Force : ±0.2% of full scale ±1 digit
- Displacement : ±0.1 mm ±1 digit
Units :
- Force in N, Kgf or Lbf
- Displacement in Mm or Inch
Sampling frequency : 1000 Hz
Maximum sample size : 70 mm
Displacement distance : 100 mm
Displacement speed : 0.1 to 10 mm/sec
Output : USB, USB Flash
Operating temperature : 0 to +40°C
Operating humidity : 20 to 80 %RH
Weight : 8.5 kg
Size : 185 x 300 x 400 mm

• Analog inputs :
• - CR800 : 3 differential or 6 simple inputs
• - CR1000 : 8 differential or 16 single-ended inputs
• Compatibility: Fissurometer, Extensometer, Inclinometer, Piezometer and Strain Gauge
• Resolution: differential: 0.013% / simple: 0.026%.
• Analog outputs :
• - CR800: 2 switched voltages, active only during measurement, one at a time
• - CR1000: 3 switched voltages, active only during measurement, one at a time
• Operating temperature : -25°C to +50°C
• Accuracy : ±(0.12% of the range + 0.8 mV)
• Protection : IP65
