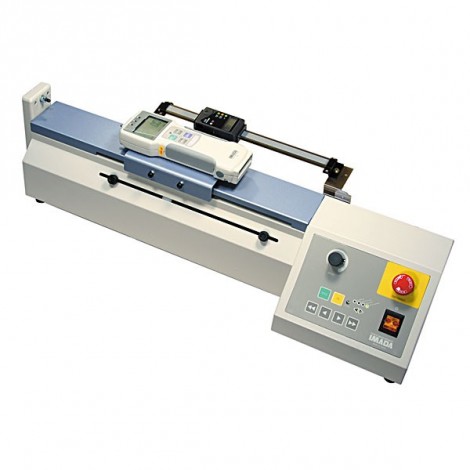

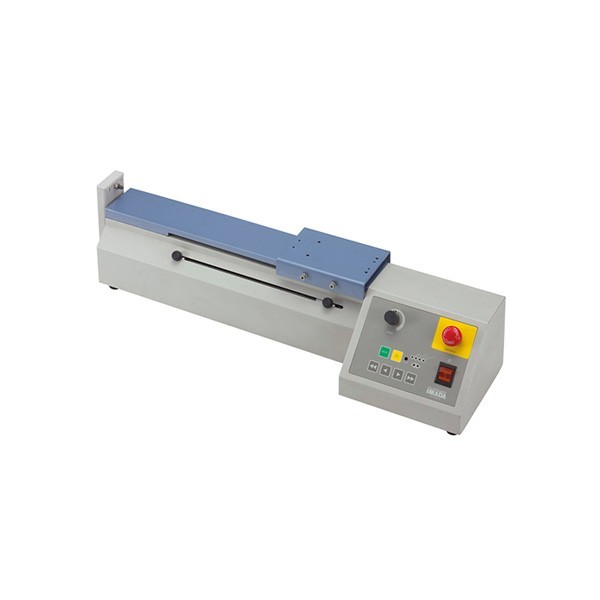

MH-1000: Horizontal Motorized force test stands
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 1000N.
Travel speed from 6 to 180 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 285mm.
Log in to your account to display prices
Login
Login
Applications
> <
Aluminum Foil Breaking Strength Test
Plastic Sheet Shear Bond Strength Test
Repulsion force measuring of a tennis ball
Tensile strength test of zipper fasteners
Adhesion test on antiseismic gel
Evaluation of bread texture
Automotive air conditioner’s knob operability...
Wire crimped terminal test
Tensile strength test of cable terminals...
Tensile Strength Test of Crimped Wire Terminals...
Tensile test on the termination of high voltage...
Cable Crimp Terminals Tension Strength Test
Wire connectors pullout test
Pull-off Test of Coating
Yoghurt pot tongue opening measurement
Sponge / foam hardness measurement
Lithium battery film hardness measurement
Hardness measurement on beauty product
Mesure de la force de traction du fil
Measuring the pulling force of toothbrush bristles
Scratch breakout force measurement
Plastic bottle crushing force measurement
Asparagus breaking force measurement
Breaking force measurement of a fishing...
Compression/crushing force measurement of material
Bag strap tension force measurement
Rubber tensile measurement
Wire Crimp Test (Manual)
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement.
- Test stand with infinitely adjustable travel speed from 8 to 240 mm/min.
- 3 OPERATIONS MODES :
Single or continuous operation for constant testing conditions.
- manual operation: Feed continuous so long as button is pressed or he limit switch is reached.
- single cycle operation: The force gauge covers a defined distance for one-time. - - continuous cycle operation: Force gauge travels a defined distance continously up and down.
AVALAIBLE OPTIONS:
-E option Equips an encoder which displays speed and distance.
-S option Equips a length scale.
-L option Equips 200mm or 250mm longer stroke than the standard model
-L option Equips 200mm or 250mm longer stroke than the standard model
MH-1000
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 1000N.
Travel speed from 6 to 180 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 285mm.
