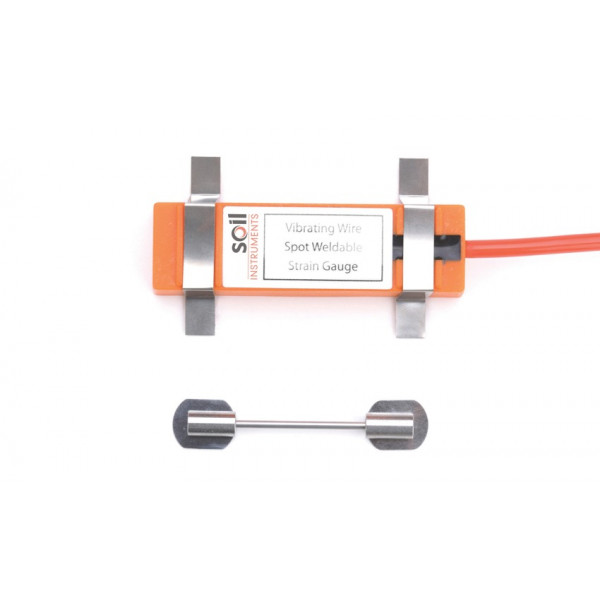

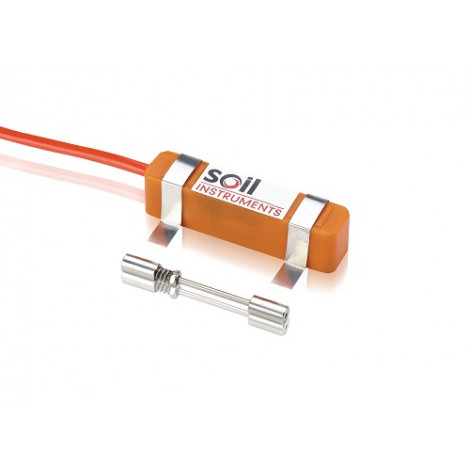

ST1 Vibrating Wire Spot Weldable Strain Gauge

Range 3000 microstrain
Resolution 0.4 microstrain
Accuracy ±0.5% full scale
Temperature range -20 to 80°C
Active gauge length 50.4 mm
Excitation method Pluck or sweep
Material Stainless Steel
Weight 50g
Dimensions L 65mm x W 13mm x H 6mm
Thermistor type NTC 3k Ω, accuracy ±0.5°C

Log in to your account to display prices
account_circleSend to a friend
ST1  Vibrating Wire Spot Weldable Strain Gauge

ST1 Vibrating Wire Spot Weldable Strain Gauge

Range 3000 microstrain
Resolution 0.4 microstrain
Accuracy ±0.5% full scale
Temperature range -20 to 80°C
Active gauge length 50.4 mm
Excitation method Pluck or sweep
Material Stainless Steel
Weight 50g
Dimensions L 65mm x W 13mm x H 6mm
Thermistor type NTC 3k Ω, accuracy ±0.5°C



Applications

> <

Spot weldable strain gauges serie ST1 are designed for application on steel structure or reinforcement bars where strain monitoring is required and the installation space is limited.

It consists of a sealed tube containing a Vibrating Wire element with weldable anchors at each end.

The anchors are separated by a small floating stainless steel tube with ‘O’ ring seals that protect the Vibrating Wire from water ingress.

A factory fitted, four core screened cable connects the coil to the readout unit.
