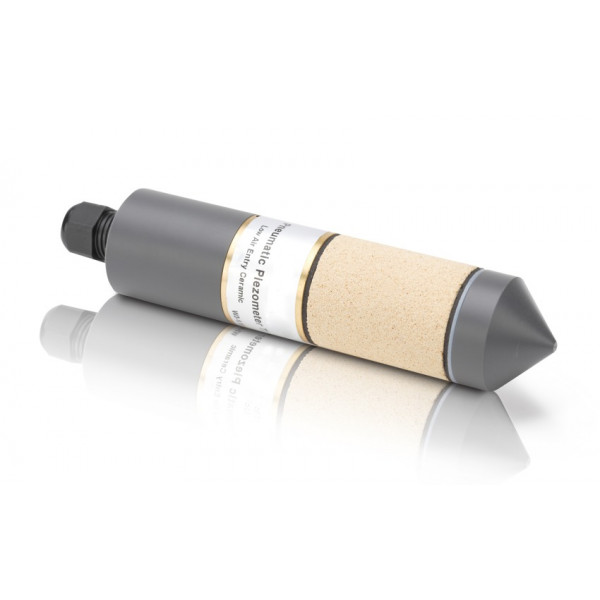

W3 PNEUMATIC PIEZOMETER

Sensor Range +30 to +1000kPa
Material Brass/PVC
Accuracy ±2.0% full scale
Outside Diameter 38mm
Filter Type HAE Ceramic or  LAE Ceramic
Tubing : Twin nylon 11 tubes, sheathed in LDP (low density polyethylene)

Log in to your account to display prices
account_circleSend to a friend
W3 PNEUMATIC PIEZOMETER

W3 PNEUMATIC PIEZOMETER

Sensor Range +30 to +1000kPa
Material Brass/PVC
Accuracy ±2.0% full scale
Outside Diameter 38mm
Filter Type HAE Ceramic or  LAE Ceramic
Tubing : Twin nylon 11 tubes, sheathed in LDP (low density polyethylene)



Applications

> <

The W3 Pneumatic Piezometer is designed for accurately measuring pore water pressures in fully or partially saturated soil and rock.

The Pneumatic Piezometer tip comprises an integral porous element with a high quality diaphragm transducer, installed either down a borehole, by burying in fill or by pushing into shallow depths in soft soil.

Twin nylon tubes in a polythene sheath can connect the transducer to a terminal panel or to the portable readout unit directly.

The readout displays engineering-based units. Readings can be taken up to 500m from the tip.
