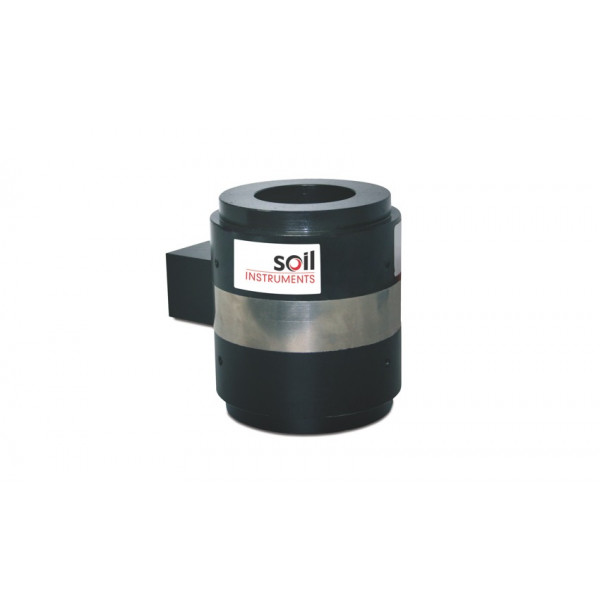

L2 VIBRATING WIRE LOAD CELL

Ranges (kN) 500 1000 1500 1800 2500 5000 10000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep
Thermistor type NTC 3k Ω Thermistor accuracy ±0.5% full scale

Log in to your account to display prices
account_circleSend to a friend
L2 VIBRATING WIRE LOAD CELL

L2 VIBRATING WIRE LOAD CELL

Ranges (kN) 500 1000 1500 1800 2500 5000 10000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep
Thermistor type NTC 3k Ω Thermistor accuracy ±0.5% full scale



Applications

> <

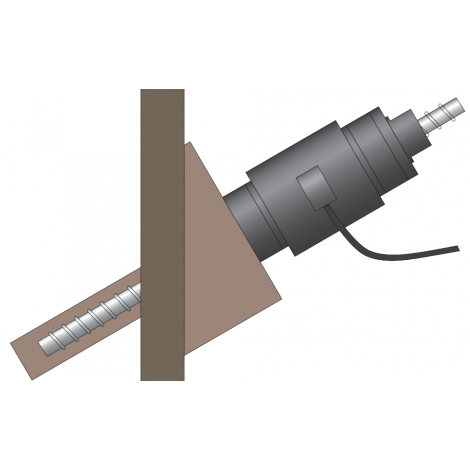

Vibrating Wire Load Cells are ideally suited for measuring loads in rock bolts, cable anchors and tendons, structural beams, piles, loads between tunnel supports and loads in pull-out tests on trial anchors.

The Vibrating Wire Load Cell is designed to directly measure load in piles, rock bolts and between tunnel supports, as well as tension in cable anchors.
