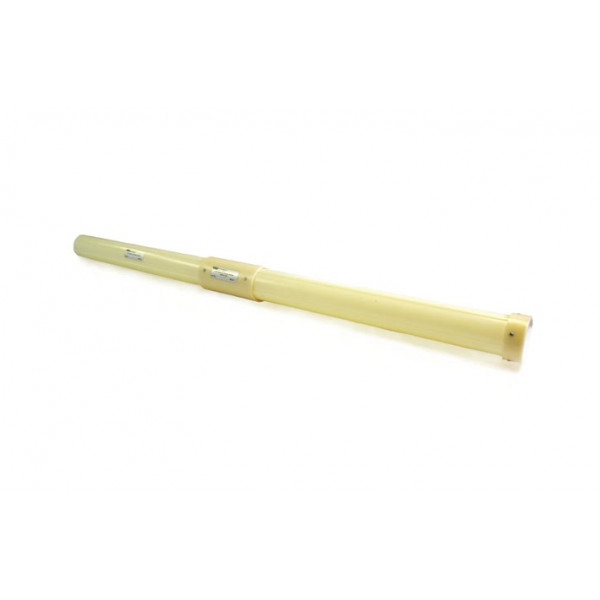

C18 : STANDARD INCLINOMETER CASING

Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.3°/3m
Collapse rating 1960kPa 1770kPa
Bend rating 3.07kN 2.65kN
Maximum temperature 80°C 80°C
Length 3m
Outside diameter 70mm or  85mm
Inside diameter 62mm or 77mm

Log in to your account to display prices
account_circleSend to a friend
C18 : STANDARD INCLINOMETER CASING

C18 : STANDARD INCLINOMETER CASING

Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.3°/3m
Collapse rating 1960kPa 1770kPa
Bend rating 3.07kN 2.65kN
Maximum temperature 80°C 80°C
Length 3m
Outside diameter 70mm or  85mm
Inside diameter 62mm or 77mm



Applications

> <

Standard Inclinometer Casing is specially designed for inclinometer test systems and is typically installed in boreholes. However, its versatility renders it suitable for use in landfills, cast to concrete or attached to structures.

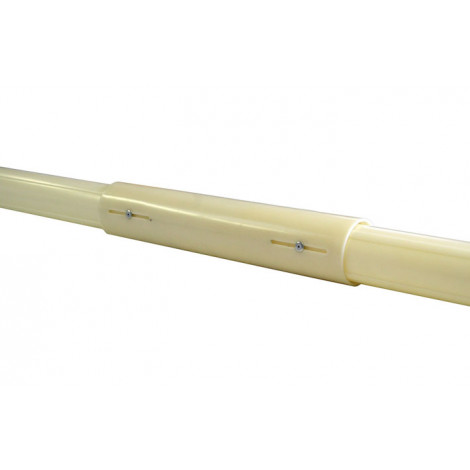

The Standard Inclinometer Casing is a specially manufactured ABS extrusion with precise keyways formed at 90° to each other. This allows the accurate orientation of inclinometer probes or In-Place Inclinometer Sensors (IPIs). The casing is jointed using standard or telescoping couplings.
