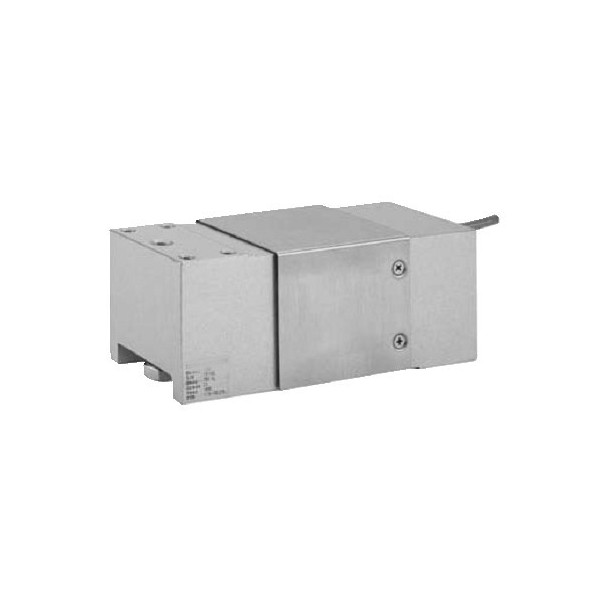

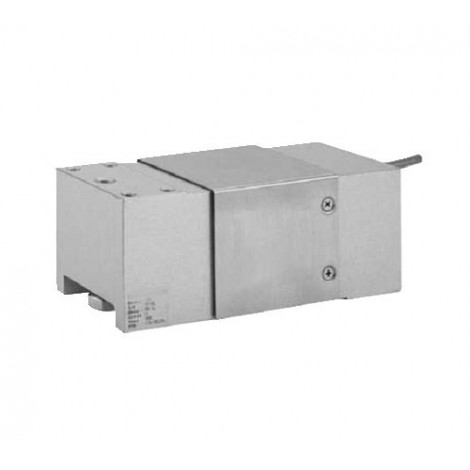

1250: High Capacity Single-Point Load Cell - From 0 to 50,..., 1000 Kg
High Capacity Single-Point Load Cell for 800 x 800 mm platform.
Measuring Range: 50, 75, 100, 150, 200, 300, 500, 635, 1000 Kg.
Material: Aluminium.
Accuracy: 1000 & 3000 points.
Environmental protection: IP66. (IP67 Option).
Approval NTEP & OIML R60.
Cable output: 3m.
Log in to your account to display prices
Login
Login
Model 1250 is a single-point load cell designed for direct mounting of large platforms.
The product is a cost-effective load cell for use on counting, weighing, bench or floor scale products. This high accuracy load cell is approved to OIML R60, NTEP and other stringent approval standards.
Suitable for use in hazardous environments, these load cells can be provided with European approval to EEx ia IIC T4 and are FM approved to class I, II, III, Division I. A special humidity-resistant protective coating assures long-term stability over the entire compensated temperature range.
The two additional sense wires, sample the bridge supply voltage at the load cell. Complete compensation of change in the lead wires resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
1250
High Capacity Single-Point Load Cell for 800 x 800 mm platform.
Measuring Range: 50, 75, 100, 150, 200, 300, 500, 635, 1000 Kg.
Material: Aluminium.
Accuracy: 1000 & 3000 points.
Environmental protection: IP66. (IP67 Option).
Approval NTEP & OIML R60.
Cable output: 3m.
