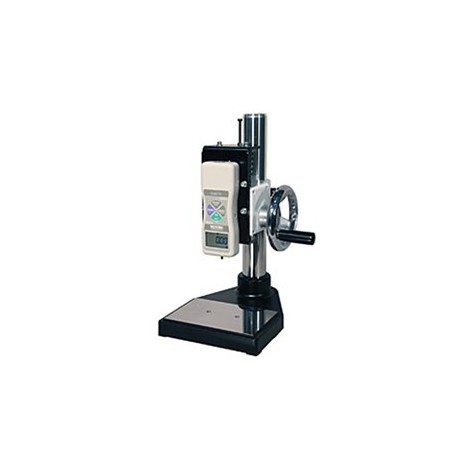

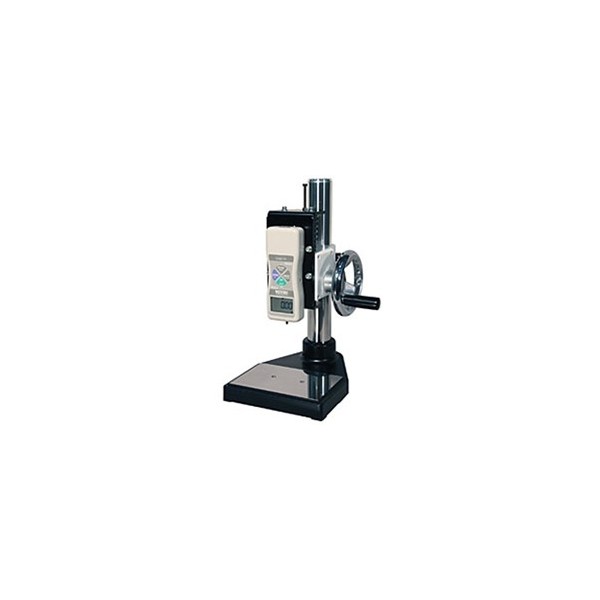

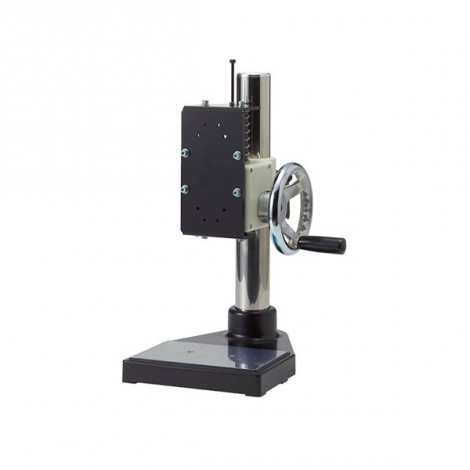

SVH manual vertical test stand - +/-1000N
Vertical manual test stand with with hand wheel for measuring compression and tension forces.
Test stand with adjusting knob, max. stroke 265 mm.
Travel of a mounted force gauge = 3mm/a complete turn of its handle
Fine movement for exact positioning.
Capacity: max. +/-1000 N.
Available with distance measuring system.
Log in to your account to display prices
Login
Login
Applications
> <
Cable Crimp Terminals Tension Strength Test
Mesure de la force de traction du fil
Plastic bottle crushing force measurement
Thick cable tension force measurement
Syringe resistance test
Battery cable harness test
Spray nozzle jet force test
Pharmaceutical tablet crushing strength test
Ball hardness test
Cloth button pull off test
Food Can Opening Test
Durability Test of a box
180 degree peel test for adhesion test
Tension test of USB cable
Beverage Can Opening Test
Switch feeling test (Motorized)
90 degree peel test
3 point bending test
- Test stand with manual hand wheel for compression and tension measurements.
- Test stand for the following force gauges up to 1000 N: model PS, FB, DS2, ZTS and ZTA.
- In combination with force gauge model ZTA and software "Force Recorder Professional", force-displacement and force-time graphes can be generated.
SVH
Vertical manual test stand with with hand wheel for measuring compression and tension forces.
Test stand with adjusting knob, max. stroke 265 mm.
Travel of a mounted force gauge = 3mm/a complete turn of its handle
Fine movement for exact positioning.
Capacity: max. +/-1000 N.
Available with distance measuring system.
