Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 5V, ± 10V, 4...20 mA.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.

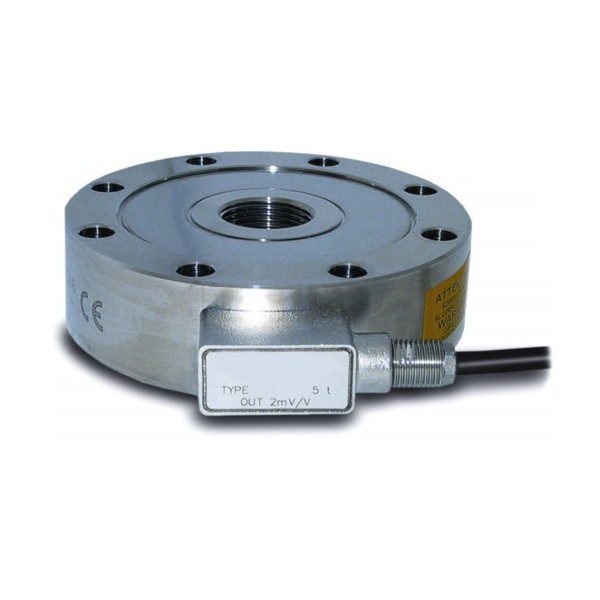

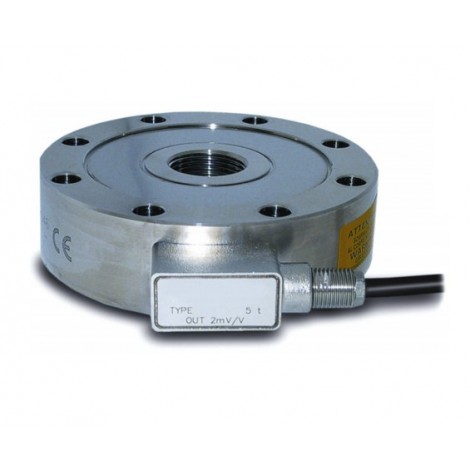

SM4-AMP is a tension and compression "Pancake" load cell, with strain gage technology.
Force transducer suitable for material testing machines and test benches in general.
SM4-amp offers high accuracy, and long term stability thanks to is degree of protection IP67.
