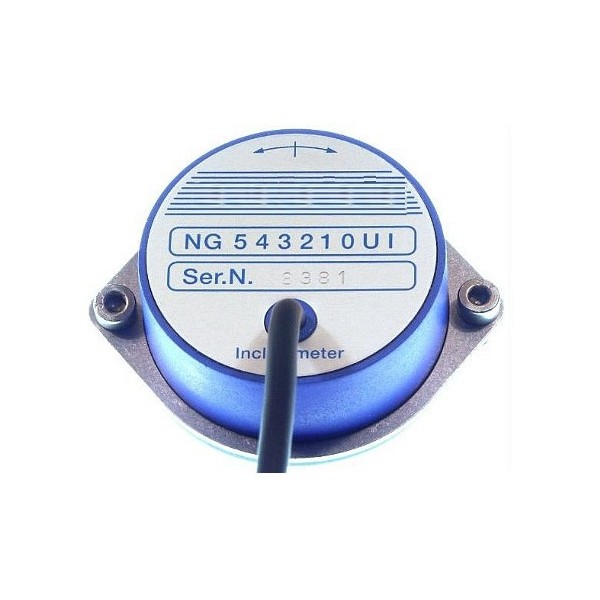

SM-NGU: Inclinometer of high measuring accuracy with an integrated 0...5

 Integrated sensor electronics including signal conditioner, 0-5V output signal.
Measuring range ±10, ±30, ±80°.
Resolution < 0.01 %.
Degree of protection  IP 65.
High long-term stability
High accuracy and signal-to-noise.

Log in to your account to display prices
account_circleSend to a friend

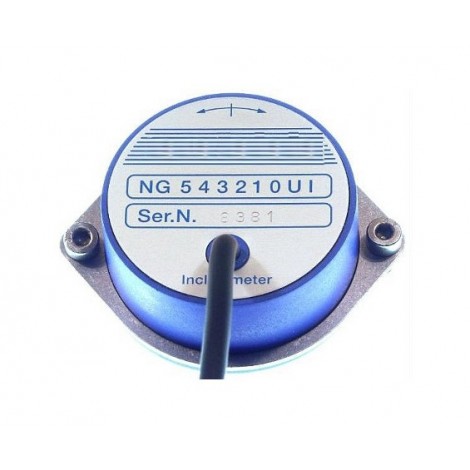

SM-NGU: Inclinometer of high measuring accuracy with an integrated 0...5

SM-NGU: Inclinometer of high measuring accuracy with an integrated 0...5

 Integrated sensor electronics including signal conditioner, 0-5V output signal.
Measuring range ±10, ±30, ±80°.
Resolution < 0.01 %.
Degree of protection  IP 65.
High long-term stability
High accuracy and signal-to-noise.



Applications

> <

The SM-NGU are capacitive, liquid based inclinometers with integrated sensor electronics and signal conditioner. Electronic temperature compensation makes up for the temperature drift of the sensitivity of the primary transformer. An integrated, highly stable voltage regulator ensures stable operation for a range of supply voltages.

The measurement technique provides a linear relationship between the angle to be measured (up to (80 degrees) and the output signal that is calibrated during manufacture. The measuring time constant can be matched to the requirements of the measurement task by appropriate hardware programming.

SM-NGU
