Due to its robustness, SM2200 is especially suitable for End-of-line tests and application under harsh environment conditions.

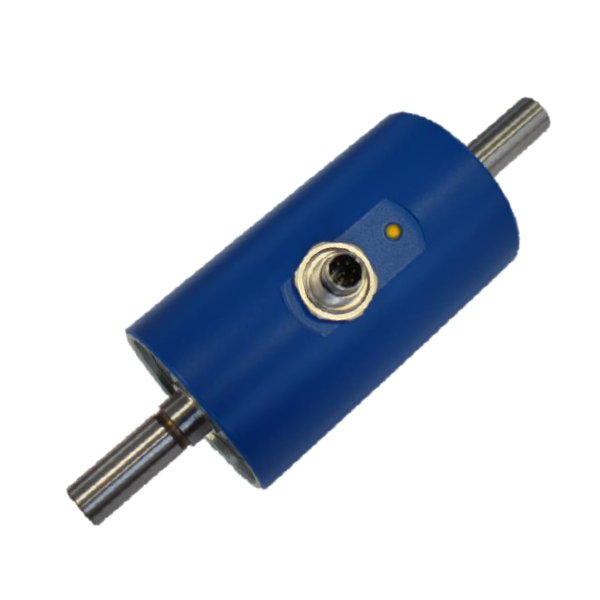

SM2300: Without contact Rotary Torque sensor - From +/- 0.5 to 100 Nm, option encoder.
Rotary Torque Sensor without contact, integrated electronic.
Measuring Range: +/- 0.5, 1, 2.5, 10, 20, 50, 1000 Nm.
Output signals: 0-10 V/4-20 mA/CAN-Bus/USB
Rotational speed: ≤ 10.000 rpm
Non linearity: 0.5%.
Integrated encoder 360 PPR (Optionnal, contact us).
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50. (option IP65)
Log in to your account to display prices
Login
Login
Applications
> <
Gym Workout Training Weight Sensors
341 Vise Clamping Force Test
Magnetostrictive torque sensors principle
The integrated readout electronics represents through its range of 1 kHz and through its minimal power supply (5-28 V) an optimal device for simple measurements.

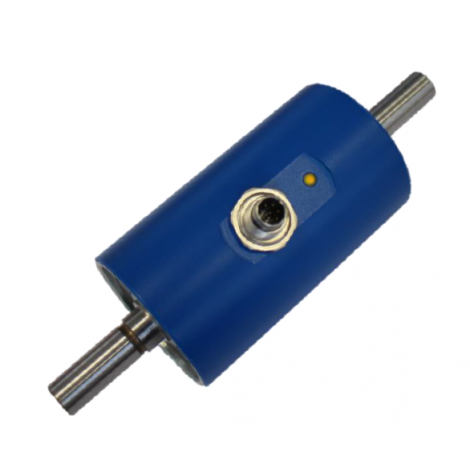

SM2300
Rotary Torque Sensor without contact, integrated electronic.
Measuring Range: +/- 0.5, 1, 2.5, 10, 20, 50, 1000 Nm.
Output signals: 0-10 V/4-20 mA/CAN-Bus/USB
Rotational speed: ≤ 10.000 rpm
Non linearity: 0.5%.
Integrated encoder 360 PPR (Optionnal, contact us).
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50. (option IP65)
